| To order spare parts specify spare part number and Noise Suppressor model number (see list below). Spare parts are seldom required because there are no moving mechanical parts in the Suppressor, and the bladder barely flexes to absorb pulsations. |
|

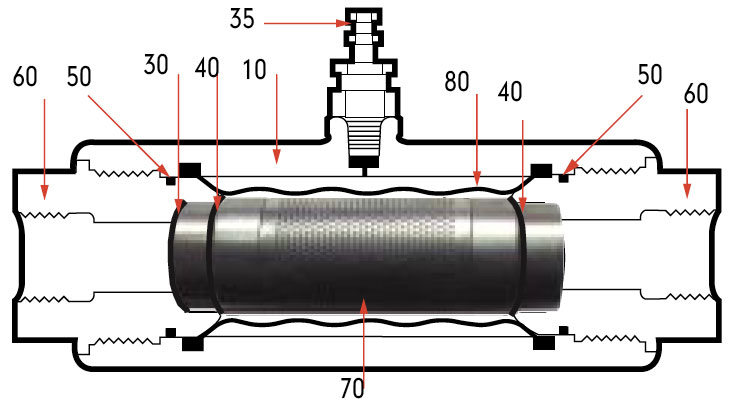

PART NUMBER
|
PART NAME
|
ADDED INFO.
|
|
10
|
Body
|
Steel Body
|
| 35 |
Valve Kit 35
|
Charging Valve
|
|
30
|
"O" Ring (1)
|
Tube Face "O" Ring
|
|
40
|
"O" Ring (2)
|
Tube O.D. "O" Ring
|
|
50
|
"O" Rings (2)
|
End Port "O" Ring
|
|
60
|
End Port
|
Specify Port Thread
|
|
70
|
Diffuser
|
Only Sold as Unit
|
|
80
|
Bladder
|
Specify Bladder Material
|
|
| |
|
|
|
|
|
|
|
|
