3000 psi Stainless Steel Suppressors

3000 psi Stainless Steel Suppressors
With Pipe Thread Connections
Sizes and Dimensions

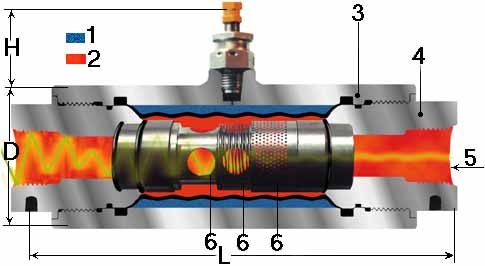

1 = Nitrogen
2 = Water or Chemical
3 = Tube Nickel Plated Inside & Out		 4 = "304" Stainless End Pieces
5 = Thread Size
6 = Three "304" Stainless Baffle Chambers
The Suppressor is bi-directional. Either end can be used for the inlet or outlet.
Special materials for salt water or highly corrosive applications are also available.

Model
Number
Tube
Size
 Thread
Diameter
Height
Length
Weight Lbs.
WM3081-12 SS
WM3081-14 SS
WM3081-16 SS
WM3081-20 SS
 0.75
0.875
1.000
1.250
1 1/16 12
1 3/16 12
1 5/16 12
1 5/8 12
2.625
1.75
8.13
8
WM3138-16 SS
WM3138-20 SS
WM3138-24 SS
1.000
1.250
1.500
1 5/16 12
1 5/8 12
1 7/8 12
4.000
1.75
8.875
24.5



All wetted parts are of 304 Stainless steel.
The tubing is electroless nickel plated on the inside and out.
The standard bladder material is Buna N. Special bladders are available.

Suppressors can also be ordered with any combinations of ends, such as split flange one end and a straight thread on the opposite end. When ordering special combination of end connections, specify the type of connection for each end.
