 5,000 psi Straight Thread |
|
5,000 psi Straight Thread

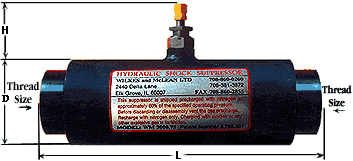

Sizes and Dimensions
|
The Suppressor is bi-directional. Either end can be used for the inlet or outlet. |
|
|
Model
Number
|
For Tube Size
|
Thread
in
Suppressor
|
Max. Flow Rate
|
Diameter
|
Height
|
Length
|
Weight Lbs.
|
| WM5081-12 |
0.750
|
1 1/16-12
|
49 G.P.M.
|
3.38
|
1
|
8.13
|
15
|
| WM5081-14 |
0.875
|
1 3/16-12
|
| WM5081-16 |
1.000
|
1 5/16-12
|
| WM5081-20 |
1.250
|
1 5/8-12
|
| WM5138-16 |
1.000
|
1 5/16-12
|
150 G.P.M.
|
5.0
|
1
|
8.88
|
48
|
| WM5138-20 |
1.250
|
1 5/8-12
|
| WM5138-24 |
1.500
|
1
7/8-12
|
|
| |
|
Suppressors can also be ordered with any combinations of ends, such as a split flange one end and a straight thread on the opposite end. When ordering special combination of end connections, specify the type of connection for each end. |
| |
|
|
|
|
|
|
|
|
|
