5000 psi Suppressors for SAE Code 62 Split Flanges

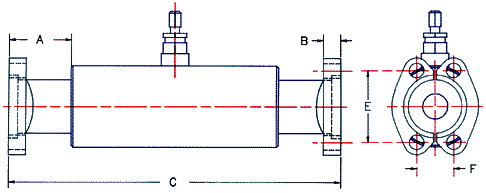

Sizes and Dimensions
|
The Suppressor is bi-directional. Either end can be used for the inlet or outlet.
|
|
| |
Model
Size
|
Flange
Size
|
Dimensions
|
| |
|
A
|
B
|
C
|
E
|
F
|
WM5081-12SFX
WM5081-16SFX
WM5081-20SFX
|
0.750
1.000
1.250
|
2.00
2.00
2.25
|
.75
.94
.75
|
10.62
10.62
11.12
|
2.000
2.250
2.625
|
0.937
1.093
1.250
|
WM5138-20SFX
WM5138-24SFX
WM5138-32SFX
|
1.25
1.50
2.00
|
2.25
2.50
2.62
|
.75
.75
.75
|
13.88
13.88
14.12
|
2.625
3.125
3.125
|
1.250
1.437
1.750
|
|
| |
| |

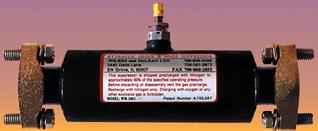

Save money by mounting the Suppressor on existing equipment.
The new split flange Suppressor mounting makes it possible to break a existing flange connection and insert the suppressor between the flanges. This makes it easy and fast to try the suppressor in any circuit that has a flange connection at the pump outlet.
 |
The Suppressor is shipped without the split flanges. The Split Flange Suppressor is shipped with an "O" ring face on one flange end and a blank face on the other flange end. This is done so the Suppressor can be inserted between any existing flange connection.
Suppressors can also be ordered with any combinations of ends, such as a split flange one end and a straight thread on the opposite end. When ordering special combination of end connections, specify the type of connection for each end. |
| |
|
